CUBE — Distributed E-Commerce Platform

LEGACY MONOLITH BOTTLENECKS AND HIGH-TRAFFIC FAILURES

Monolithic e-commerce architectures frequently experience severe performance degradation during high-traffic promotional events. When thousands of concurrent users attempt to purchase limited-inventory products simultaneously, single-database transaction locks create critical bottlenecks across the application stack.

Key Operational Friction:

A sudden spike in checkout requests would lock shared product catalog and inventory database tables, causing HTTP connection timeouts for users attempting to browse listings.

Primary Challenges Identified:

• Database Lock Contention: Shared relational database tables created write locks during heavy checkout bursts, blocking concurrent read queries.

• Tight Domain Coupling: Payment processing delays directly degraded the user experience of browsing and shopping cart updates.

• Single Point of Failure: A memory spike in the invoicing module brought down the entire storefront interface.

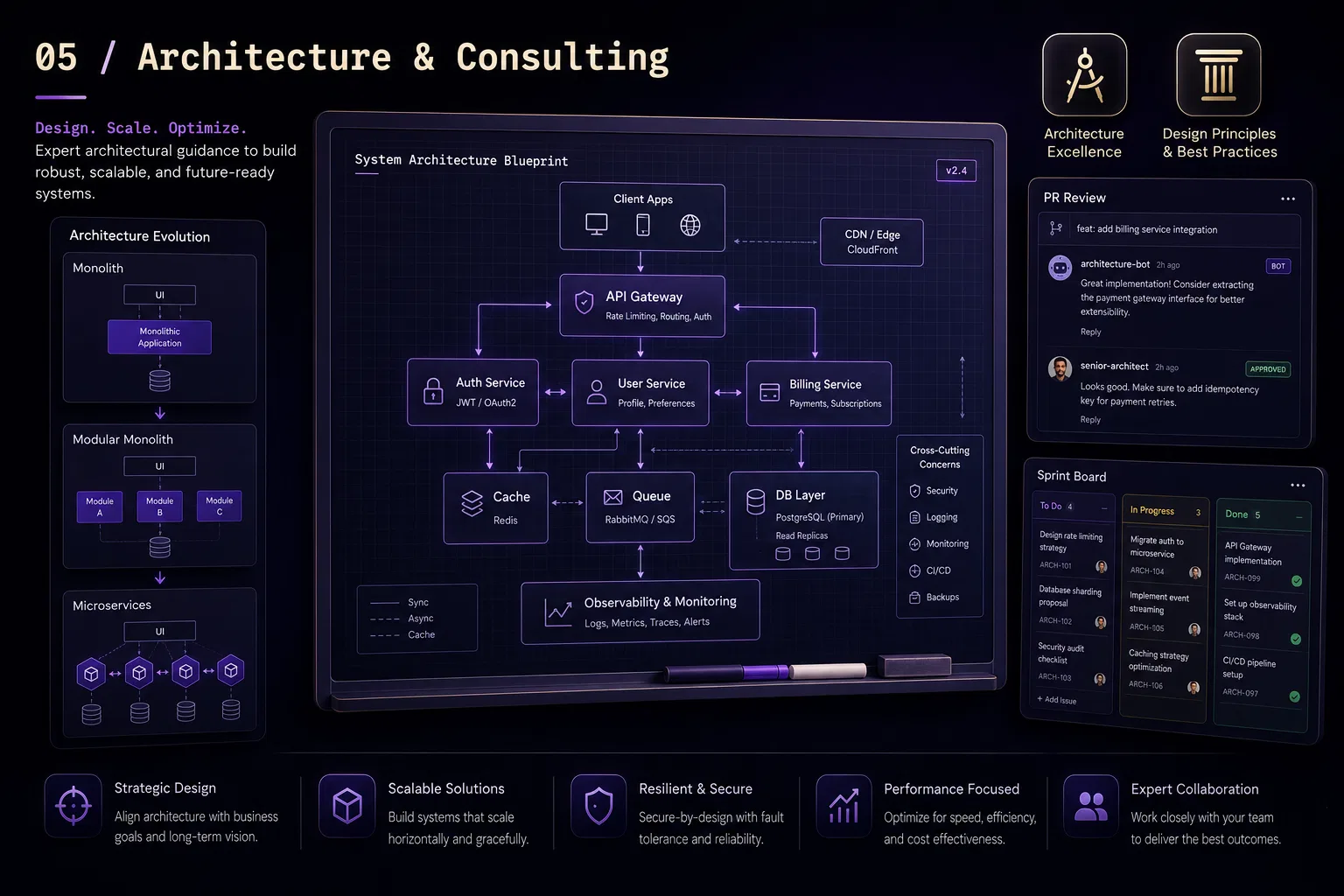

DOMAIN-DRIVEN MICROSERVICES ARCHITECTURE

To achieve zero-downtime scaling, the monolith was refactored into a distributed microservices ecosystem using Node.js and TypeScript. Each core business domain was isolated into an independent service operating with its own dedicated database.

Core Architecture Highlights:

• API Gateway Layer: Acts as a unified entry point handling JWT verification, rate limiting, and request proxying via express-http-proxy.

• Event-Driven Messaging: Integrated RabbitMQ as an asynchronous event bus for inter-service communication such as OrderCreated and PaymentProcessed events.

• CQRS Search System: Decoupled product writes from search queries by syncing PostgreSQL catalog changes via RabbitMQ into an Elasticsearch cluster for sub-50ms query execution.

ARCHITECTURAL TRADE-OFFS AND ENGINEERING DECISIONS

1. Database-per-Service Isolation:

Assigned dedicated PostgreSQL instances to Catalog, Order, Inventory, and Auth services to eliminate database-level coupling. Cross-service data consistency was resolved using the Saga pattern.

2. Orchestrated Saga Pattern:

Implemented an Orchestrated Saga with compensating transactions. If payment authorization fails after inventory reservation, a CancelInventoryReservation event automatically restores stock balance.

3. Token Rotation and Redis Session Blacklisting:

Combined stateless JWT access tokens with Redis-stored refresh token hashes to enable instant administrative account revocation.

QUANTIFIABLE PERFORMANCE AND SCALABILITY BENCHMARKS

• 45ms Average Routing Latency: Reduced global API routing latency across all microservices under load.

• 5,000+ Concurrent Checkouts: Sustained 5,000 concurrent checkout attempts per minute with zero deadlocks or overselling errors.

• Complete Fault Isolation: Service outages in notifications or analytics no longer impact browsing or checkout flows.
